| Model: | HBS-62.5Z, Automatic Turret, Touch Screen | Digital Eyepiece: | Digital Micrometer Eyepiece, Digital Display Of Hardness Value, Easy To Operate |
|---|---|---|---|
| Test Process: | Automated Test Process, The Operation Is Simple, And There Is No Human Error | Data Process: | USB And RS232 Interfaces, Built-in Printer, The Test Results Can Be Directly Printed |

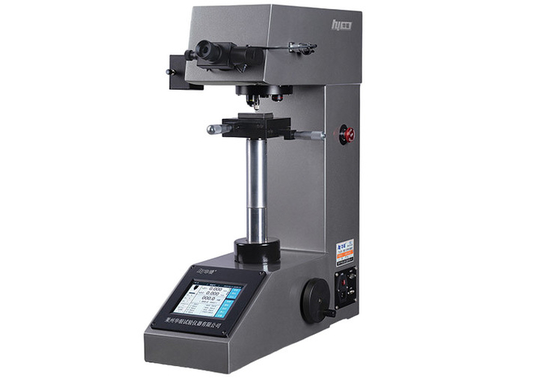

Automatic Turret Low Load Brinell Hardness Tester HBS-62.5Z with Built-in Printer
Main Features:
● Automatic turret; electronic loading test force, fully automatic closed-loop pressure sensor control system;
● Cast iron casing, solid structure, good rigidity, reliable, durable, high test efficiency;
● Adopt ARM high-speed processor, 5.6-inch LCD touch screen;
● Digital micrometer eyepiece, digital display of hardness value, easy to operate;
● Test force loading, dwell, unloading is fully automatic, and the time-force value curve is dynamically displayed during the loading and unloading process;
● The screen can display the test force, indentation length, holding time, number of measurements, etc.;
● The test process is automated, the operation is simple, and there is no human error;
● Support various hardness value conversion;
● With database storage data function, test data is stored synchronously and can be exported;
● Equipped with USB and RS232 interfaces, it is convenient for users to process data;
● Equipped with a micro printer, the test results can be directly printed;
● Accuracy meets GB/T231.2, ISO6506-2 and American ASTM E10.
● HYHB300 image measurement system is optional, which can realize online function through data line, and control various actions of hardness tester on computer, including selection and application of test force, switching of indenter and objective lens, setting of dwell time, etc.;
CCD image measurement technology can automatically capture indentation, automatically measure indentation diameter, automatically display hardness value and voice report; test report can be output and printed in Word or Excel format;
Scope of application:
● Determine the Brinell hardness of ferrous metals, non-ferrous metals and other materials;
● Determine the Brinell hardness of bearing alloy materials such as lead-based alloys, babbitt alloys, tin-bismuth alloys;
● Determine the Brinell hardness of certain non-metallic materials such as hard plastics and bakelite;
● Determine the Brinell hardness of parts produced by casting, forging, rolling and other processes.
Technical Parameters:
| Model | HBS-62.5Z |
| Test force |
9.80,24.52,49,61.29,98.07,153.2,294.2,306.5,612.9(N) 1,2.5,5,6.25,10,15.625,30,31.25,62.5(kgf) |
| Display | 5-digit hardness value, 4-digit diagonal length (D1, D2), Hold time, number of tests, average, standard deviation, return |
| Test force retention time(s) | 1~99 |
| Loading control | Automatic (load/dwell/unload) |
| Conversion | Rockwell, Superficial Rockwell, Vickers |
| Minimum measurement unit | 0. 25μm(Subject to the choice of objective lens) |
| Total magnification | Objective: Observe or measure 5X, measurement 10X (support special objective), Total magnification: 50X, 100X |
| Data output | Built-in printer |
| Vertical Space | Maximum height 230mm |
| Indenter center to inner wall | 130mm |
| Executive standard | Accuracy meets GB231.2, ISO6506-2 and ASTM E10 |
| Power supply | AC220V±5%, 50~60Hz |
| Instrument weight | About 75kg |
| Optional accessories | XY table, CCD measurement system. |
