Model: | HB-3000D | Control System: | Fully Automatic Closed-loop Pressure Sensor Control System |
---|---|---|---|
Display: | LCD Touch Screen, Reading Microscope Under The Machine, Manual Input Indentation Diameter | Force And Scales: | 12 Brinell Scales; 10 Levels Of Test Force, Force Range: 62.5kgf-3000kgf |

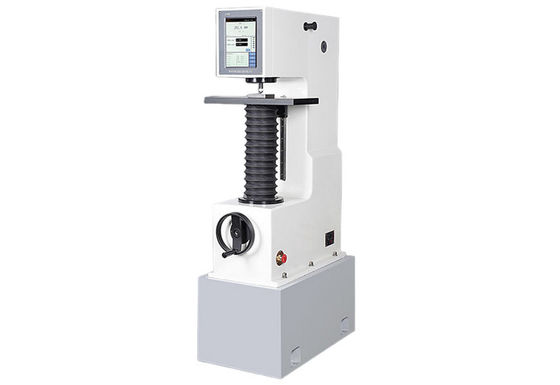

Heavy Duty Brinell Hardness Tester HB-3000D with Motorized Loading Control
Technical Specification:
Model | HB-3000D | |
Test Force | kgf | 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf |
N | 612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N | |
Test Range | 4~650HBW | |
Loading Method | Automatic (Loading/Dwell/Unloading) | |
Hardness Reading | By measuring microscope | |
Conversion Scale | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBS, HBW | |
Data Output | USB and RS232 Ports | |
Dwell Time | 1~95s | |
Max. Height of Specimen | 380mm | |
Throat | 190mm | |
Power Supply | AC220V/50Hz/1Ph, AC110V/60Hz/1Ph | |
Execute Standard | ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2 | |
Dimension | 780×480×1650mm, rectangle test table 480x240x35mm | |
Weight | Net Weight: 560kg, Gross Weight: 610kg |
Main Features:
● The test force mechanism designed by applying Pascal's law, stable and impact-free, effectively meeting the requirements of the Brinell hardness test method;
● The test force mechanism, pressure sensor and Brinell spindle indenter are directly connected to form the Brinell hardness test head technology-bistable direct-drive hardness tester loading unit;
● Adopting ARM high-speed processor, fully automatic closed-loop pressure sensor control system, electronic control of loading and unloading test force, high force accuracy;
● Cast iron shell, solid structure, good rigidity, reliable, durable, high test efficiency;
● LCD touch screen, reading microscope under the machine, manual input indentation diameter to display hardness value;
● Test force loading-dwell-unloading is fully automatic, and the loading and unloading process dynamically displays the time-force value curve;
● The screen can display test force, indentation length, dwell time, number of measurements, etc.;
● 12 Brinell scales; 10 levels of test force, force range: 62.5kgf-3000kgf;
● The measuring stroke is large, and the distance from the center of the indenter to the machine wall is wide, which is suitable for measuring large workpieces;
● Supports various hardness value conversions;
● Support data storing in the database, and the test data can be stored synchronously and exported;
● Equipped with USB and RS232 interfaces, which is convenient for users to process data;
● Optional portable Brinell image measurement system;
● The accuracy meets GB/T231.2, ISO6506-2 and American ASTM E10.
Scope of application:
● Determine the Brinell hardness of ferrous metals, non-ferrous metals and other materials;
● Determine the Brinell hardness of bearing alloy materials such as lead-based alloys, babbitt alloys, tin-bismuth alloys;
● Determine the Brinell hardness of certain non-metallic materials such as hard plastics and bakelite;
● Determine the Brinell hardness of parts produced by casting, forging, rolling and other processes.
