Model: | HBS-3000DZ | Lifting Structure: | One-button Start, Automatic Ascending And Descending Of Z Axis |
---|---|---|---|
Control System: | Fully Automatic Closed-loop Pressure Sensor Control System | Test Process: | Automated, The Operation Is Simple, And There Is No Human Error |

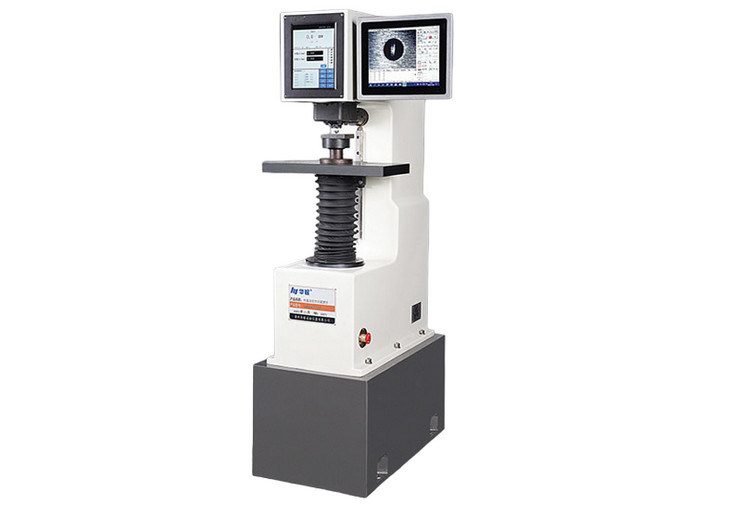

Automatic Heavy Duty Brinell Hardness Tester HBS-3000DZ with One Key Operation
Technical Specification:
Model | HBS-3000DZ | |
Test Force | kgf | 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf |
N | 612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N | |
Brinell Scales | HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000 | |
Test Range | 4~650HBW | |
Loading Method | Automatic (Loading/Dwell/Unloading) | |
Hardness Reading | By measuring microscope | |
Conversion Scale | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBS, HBW | |
Data Output | USB and RS232 Ports | |
Dwell Time | 1~95s | |
Max. Height of Specimen | 325mm | |
Throat | 190mm | |
Power Supply | AC220V/50Hz/1Ph, AC110V/60Hz/1Ph | |
Execute Standard | ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2 | |
Dimension | 780×480×1650mm, rectangle test table 480x240x35mm | |
Weight | Net Weight: 580kg, Gross Weight: 630kg |
Main Features:
● One-button start, automatic completion of loading, dwell, unloading, data measurement and data display;
● The test force mechanism designed by applying Pascal's law is stable and impact-free, effectively meeting the requirements of the Brinell hardness test method;
● The test force mechanism, pressure sensor and Brinell spindle indenter are directly connected to form the Brinell hardness test head technology-bistable direct-drive hardness tester loading unit;
● Adopting ARM high-speed processor, fully automatic closed-loop pressure sensor control system, electronic control of loading and unloading test force, stable and impact-free, high force value accuracy;
● Automatic turret; fully automatic switch of optical lens and indenter;
● One-button start, automatic ascending and descending of Z axis, automatic completion of loading-dwell-unloading, automatic indentation measurement and hardness value display;
● Cast iron casing, solid structure, good rigidity, reliable, durable, high testing efficiency;
● 10.4-inch LCD touch screen; fully automatic test force application-dwell-unloading;
● The indentation image, test force, indentation length, dwell time, measurement times, hardness value, etc. are displayed on the computer, and the operation is convenient;
● The test process is automated, the operation is simple, and there is no human error;
● 12 test scales; 10 levels of test force, force range: 62.5kgf-3000kgf;
● The measurement stroke is large, and the distance from the center of the indenter to the machine wall is wide, which is suitable for measuring large workpieces;
● Chinese and English language interface conversion; various hardness value conversion;
● With database storage data function, test data is stored synchronously and can be exported;
● Equipped with USB and RS232 interfaces, it is convenient for users to process data;
● Adopt CCD image measurement technology, automatically capture indentation, automatically measure indentation diameter, automatically display hardness value and can report numbers by voice;
● Through the RS232 interface and data cable, it is connected to the integrated touch screen industrial computer, and various actions of the hardness tester are controlled on the computer, including: selection and application of test force, switching of indenter and objective lens, setting of dwell time, etc.; the test report can be output and printed in Word or Excel format;
● The accuracy meets GB/T231.2, ISO6506-2 and American ASTM E10.
Scope of application:
● Determine the Brinell hardness of ferrous metals, non-ferrous metals and other materials;
● Determine the Brinell hardness of bearing alloy materials such as lead-based alloys, babbitt alloys, tin-bismuth alloys;
● Determine the Brinell hardness of certain non-metallic materials such as hard plastics and bakelite;
● Determine the Brinell hardness of parts produced by casting, forging, rolling and other processes.
