| Model: | PZ-60A Portable Digital Conductivity Meter | Frequency: | 60KHz Sine Wave |
|---|---|---|---|
| Resolution: | 0.01%IACS (when<51%IACS) | Display: | LED Screen, With Back Lighting |

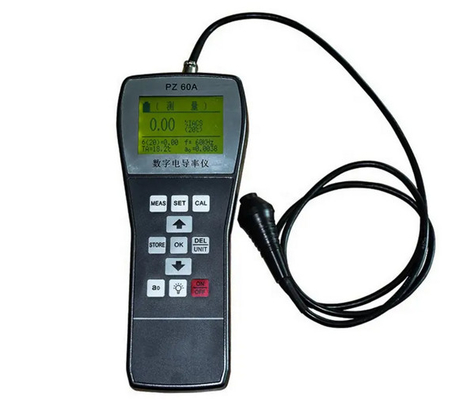

Sine Wave 60KHz PZ-60A Portable Digital Eddy Current Conductivity Meter with Data Storage
Brief Introduction:
The iqualitrol PZ-60A Portable Digital Eddy Current Conductivity Meter is a digital Eddy Current Conductivity Meter designed by eddy current phase testing method.
Used for inspection of non-ferrous magnetic metal identification, classification and status. Widely applied in metallurgy, machinery, power electronics, aerospace science, nuke industry, military industry and other industries.
Application Range:
Alloys identification & inspection;
Inspect heat treatment status during manufacturing process and overheating damage under service time (e.g. aeroplanes);
Materials Classification;
Metals Assortment;
Inspect powder metallurgy parts density;
Inspect electrical conductivity of conducting materials under operation.
Main Features:
1, Nice appearance, easily carry and hold, operation easily and conveniently;

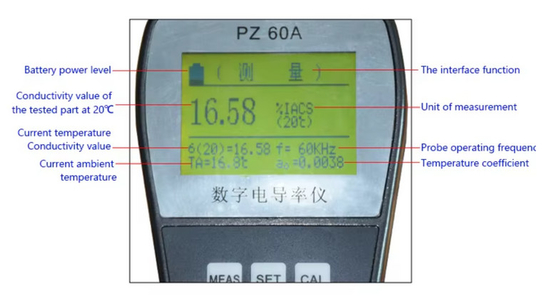

2, Big screen and character, can simultaneously display testing results, testing frequency, temperature, temperature compensation coefficient and other necessary data;
3, Back lighting designed, easy to get testing results under low light environment;
4, PZ60A possess 2 switchable operating frequency, 60 KHz is aviation industry standard, 500Khz is for testing thin profiles and small specimens;
5, Unique temperature compensation coefficient set and automatic calibration design making the operation easy and reliable;
6, Possess good lift-off compensation and temperature compensation design to insure measurement accuracy;
7, Probe is exchangeable, customers can replace a new one supplied by our company buy themselves, no need to match;
8, Data storage unit built-in can record 500 units of testing results and necessary data, connect with DC to create full report.
Technical Specifications:
| Model | PZ-60A |
| Operating frequency | 60KHz sine wave |
|
Electric conductivity measurement range |
7.76% IACS to 110%IACS, 4.5MS/m to 64MS/m or electrical resistivity 1.560 to 22.22μΩ·cm |
| Resolution | 0.01%IACS(when<51%IACS) |
| Measurement accuracy |
0.1%IACS (51%IACS-110%IACS), ±0.5%(temperature 20℃); ±1%(temperature 0-40℃) |
| Lift-off compensation | probe compensation 0.5mm |
| Temperature measurement | 0℃-50℃ (accuracy reaches to 0.5℃) |
| Automatic calibration function | Electric conductivity testing results automatically calibrated to 20℃value |
| Normal operating environment | temperature 0-50℃, relative humidity 0-95% |
| Display | Large LED screen, with back lighting, simultaneously display many necessary data |
| Power | 3 AA chargeable batteries (Ni-MH) or 3 1.5V alkaline battery chargeable batteries can continuous work for over 16hours( back lighting off) |
| Probe | A type matched diameter Φ14mm operating frequency 60 KHz probe, replaceable |
| Data storage | Storage 500 measurement data |
| PC communication mode | RS 232 serial port |
| Main unit weight | 0.5kg ( batteries included) |
| Instrument shell | High Impact Resistance, water proof engineering plastic shell |
| Packing and protection | High Impact Resistance, water proof aluminum carrying case, filled with main unit, probe, communication cable, operation manual, standard block, charger, instrument support |

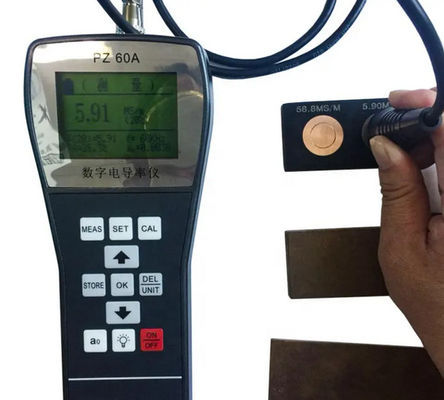

| Accessories | A1 type electric conductivity standard blocks (2 pcs) |
