| Model: | ISonic-3000HMC | Probe: | Single Crystal Delay Single Head (15MHz) |
|---|---|---|---|
| Maximum Value Capture: | Display The Current Thickness Value, Minimum Thickness Value And Maximum Thickness Value At The Same Time | Difference Value Mode: | Display The Difference Between The Actual Thickness And The Preset Thickness And The Thinning Percentage |

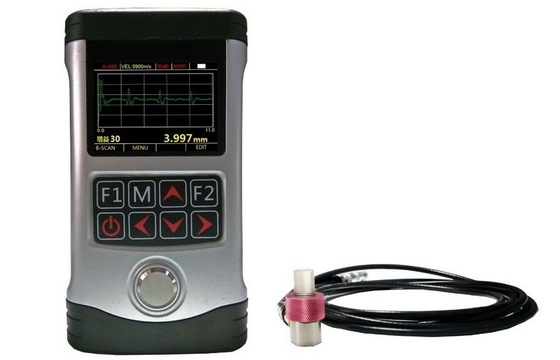

Color Display Single Crystal Ultrasonic Thickness Gauge IQUALITROL iSonic-3000HMC
Technical Specifications:
| Measurement range |
Pulse-echo method: 1.2mm-26mm Echo-echo method: 0.2mm-13mm Multiple wave test method: 0.2mm-9mm Automatic mode: 0.2mm-26mm |
| Measurement resolution | 0.001 or 0.01 or 0.1 |
| Material sound velocity range | 1000-9999m/s |
| Working Environment | Temperature: -10C - 60C; relative humidity less than 90% |
| Dimension & weight | 146mm*81mm*30mm, 300g (including battery) |
| Measuring units | mm or inch |
| Power supply | two AA batteries |
| Display | 2.4 TFT color display (320x240) |
Main Functions:
1. Display mode:
A-SCAN: Display the echo waveform of the workpiece;
B-SCAN: Time-based B scan, display the cross-section of the workpiece;
Normal mode: Large digital view of the thickness value;
Difference Value mode: Display the difference between the actual thickness and the preset thickness and the thinning percentage;
Maximum value capture: Display the current thickness value, minimum thickness value and maximum thickness value at the same time;
2. Gain: Real-time adjustable;
3. Instrument shutdown: Automatic shutdown after 5, 10, 20 minutes of no operation, or manual shutdown;
4. Probe used: Single crystal delay single head (15MHz);
5. Alarm setting: When the measured value is greater than the upper and lower limits, change the displayed thickness value color and waveform color to indicate an alarm.
