Product Details:
Payment & Shipping Terms:
|
| Reading: | Hardness By Dial Gauge | Resolution: | 0.5HR |
|---|---|---|---|
| Height: | Max Height Of Specimen 170mm | Depth Throat: | 128mm |
| Loading Control: | Manual Loading, Dwell, Unloading | Test Force: | Initial 10Kgf (98N), Total 150kgf For HRC |

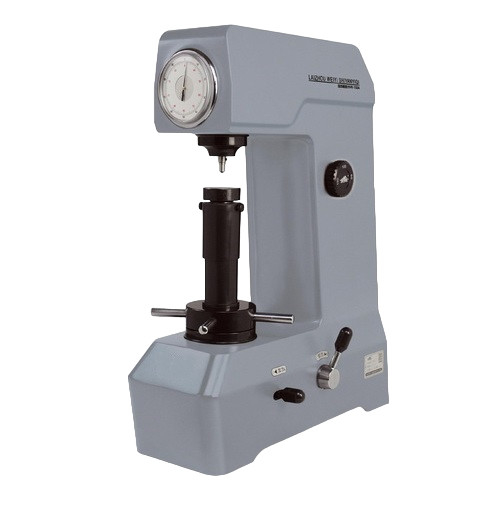

Manual Loading Full Mechanical Rockwell Hardness Tester Dial Reading 0.5HR Resolution
Technical Data Download: iqualitrol Rockwell Tester DigiRock HR1
Iqualitrol DigiRock HR1 Rockwell hardness tester is a popular-used hardness testing instrument to measure the hardness of the metal materials. No need power supply, the speed of the test force loading is regulated by the buffer and the test force is regulated by the load-change hand wheel. It has easy operation and stable performance, therefore it is widely used.
Application range:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers, chrome layers, tin layers etc.
Technical Specification:
| Model | DigiRock HR1 |
| Initial Test Force | 10kgf (98.07N) |
| Total Test Force | 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
| Indenter | Diamond Rockwell Indenter, ф1.588mmBall Indenter |
| Loading Method | Manual |
| Hardness Reading | Dial Reading |
| Resolution | 0.5HR |
| Max. Height of Specimen | 170mm |
| Throat | 128mm |
| Execute Standard | ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 |
| Dimension | 500×225×640mm, Packing Dimension: 650×370×950mm |
| Weight | Net Weight: 65kg, Gross Weight: 80kg |
