Product Details:
Payment & Shipping Terms:
|
| Insert Tube: | Length 1.5M | Camera: | 0.45 Mega Pixel |
|---|---|---|---|
| IR Function: | IR/IR Thermal Imaging(optional) | Application: | Gas Turbines, Steam Turbines, Diesel Engines |
| Probe: | Diameter 3.9mm | Waterproof: | Camera/Object Glass/Tubes:IP67 |
| Highlight: | non destructive testing machine,fruit hardness tester |
||

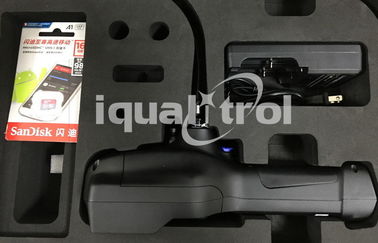

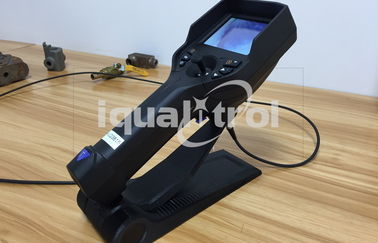

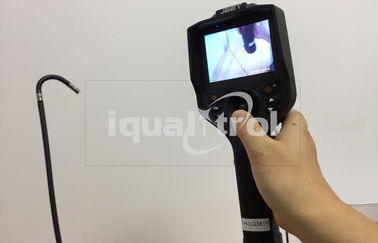

Visual Inspection Industrial Videoscope with Front View Camera Insert Tube Diameter 3.9mm
Brief Introduction:
An industrial videoscope is a flexible inspection tool used to remotely inspect areas that are not otherwise visible. An industrial videoscope is typically used for visual or non-destructive testing.
An industrial videoscope consists of:
CCD or CMOS camera housed in the tip of the probe
Interchangeable tip optics
Articulating tip
Flexible working length
Illumination Source
Articulation controls
LCD monitor
Application:
iqualitrol videoscopes are widely used in the fields of automotive manufacturing, car aftermarket, police security checking, aviation and aerospace area, special inspection institute, pharmaceutical machinery, non-destructive testing explosion-proof detection, ect.
Industrial videoscopes are used to remotely inspect plant and equipment for condition, quality control check are made with videoscopes on precision parts and castings and law enforcement uses videoscopes for detection of hidden contraband and explosive ordinance disposal.
Common inspections include:
Gas turbines
Steam turbines
Boiler tubes
Heat exchanger tubes
Rotating equipment
Foreign object retrieval
Aircraft
Gearboxer
Quality Assurance:
All products are complied with RoHS, CE and ISO standard and passed testing for temperature, waterproof, drop, vibration and pressure. Our vision is providing high-quality professional inspection instrument to every customer.
Operation Environment:
| Host System Working Temperature | -20°C~50°C, when 0°C below, the display needs preheating. |
| Camera Working Temperature | -20°C~80°C, when 0°C below, please reduce oriented operation. |
| Store Temperature | -23°C~63°C |
| Relative Humidity | Maximum: 92%, non-condensing |
Technical Specifications:
| Camera Diameter(mm) | Φ3.9mm |
| Camera Material | Titanium alloy |
| Camera Pixel | 0.45 Mega Pixel |
| Depth of Field | 20mm～150mm/ 10-100mm |
| Angle of Field | 120° |
| Illumination | 30,000lx at a maximum |
| Bright/Chroma/Contrast Ratio Adjustment | Manual, bright: six levels, chroma and contrast ratio: manual adjusting |
| Articulation | 360° all-way articulation |
| Bending Angle | ≥180° |
| Effective Working Length | 2m |
| Insert Tube | tungsten-braided |
| Protecting Device of Durability |
Buffer protection device between the host and wear-resistant tube |
| Display | Highlight 3.5 inches TFT LCD, can be replaceable for 5.7 inches display |
| Display Resolution | 640*480 |
| Image Resolution | 640*480/1280*720/1920*1080 |
| Video Resolution | 640*480/1280*720/1920*1080 |
| Image/Video Format | JPEG/MOV |
| WIFI Function | WIFI(optional) |
| IR Function | IR/IR thermal imaging(optional) |
| Memory | Standard TF card:8G, Maximum: 32G |
| Language | Chinese, English, Russian… 8 languages |
| Data I/O port | Micro-USB port,HDMI port |
| Waterproof | Camera/Object glass/Tubes:IP67 |
| Working Time | ≥8 hours |
| Weight | ≤0.55kg(with batteries) |
| Power Supply | Rechargeable lithium battery(or built-in battery) |
| Battery Capacity | 3.7V 3200mAh |
| Power Consumption | 2W |
| Charging Parameters | DC5V, Maximum current:1A |
